100MM 110MM Granite Cutting Blade Vacuum Brazed Diamond Disc For Cutting Stone
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|
|
Detail Information |
|||
| Size: | Diameter 100 To 110 Mm | Type: | Vacuum Brazed Diamond |
|---|---|---|---|
| Purpose: | For Cutting Marble Granite Stone | Quality: | Good Quality And High Efficiency |
| Suitable: | Dry Cutting | Packing: | In Carton |
| High Light: | 100MM Vacuum Brazed Diamond Disc,110MM Vacuum Brazed Diamond Disc,sharp granite cutting blade odm |
||
Product Description

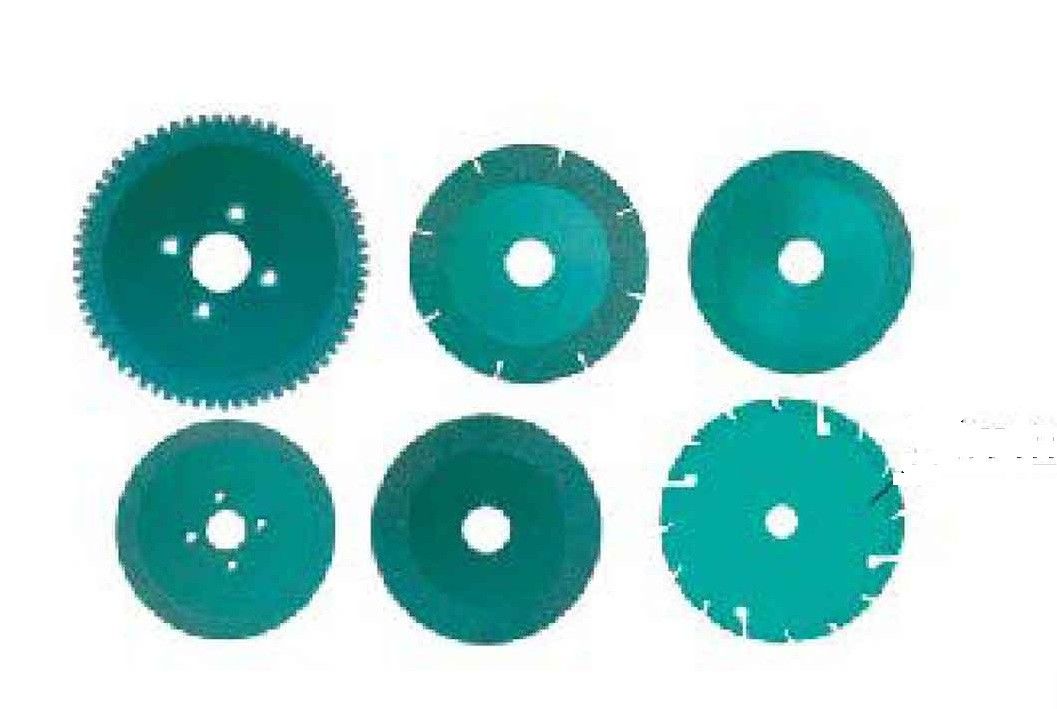

Vacuum Brazed Diamond Disc for Cutting Stone
BY - H003
Diameter: 100,110MM
Diamondwidth: 5,10,15
Hole: 20MM
●Dry cut, wet cut, all right.
●Super sharp, efficient.
●Very wide applicability
●Diamond height can be selected, cutting and grinding are available.
| Diameter | ItemNo. | Seg.Width | Seg.Height | Arbor |
| 4”(105mm) | LFC105 | 2.1mm | 10mm | 7/8”,20mm |
| 4.5”(115mm) | LFC115 | 2.2mm | 10mm | 7/8”,20mm |
| 5”(125mm) | LFC125 | 2.2mm | 10mm | 7/8”,20mm |
| 6”(150mm) | LFC150 | 2.2mm | 10mm | 7/8”,20mm |
| 7”(180mm) | LFC180 | 2.3mm | 10mm | 7/8”,DM |
| 8”(200mm) | LFC200 | 2.3mm | 10mm | 7/8”,DM |
| 9”(230mm) | LFC230 | 2.5mm | 10mm | 7/8”,DM |
| 10”(250mm) | LFC250 | 2.5mm | 10mm | 7/8”,DM |
| 12”(300mm) | LFC300 | 3.2mm | 10mm | 1”,20mm |
| 14”(350mm) | LFC350 | 3.2mm | 10mm | 1”,20mm |
| 16”(400mm) | LFC400 | 3.2mm | 10mm | 1”,20mm |
| 18”(450mm) | LFC450 | 3.6mm | 10mm | 1”,20mm |
| 20”(500mm) | LFC500 | 3.6mm | 10mm | 1”,20mm |
