RYJ2000C 20MPa Segment Brazing Metal Sintering Machine 60KVA
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|
|
Detail Information |
|||
| Model: | RYJ-2000C | Rated Pressure:: | 250KN |
|---|---|---|---|
| Rated Oil Pressure:: | 20MPa | Rammer Area:: | 250x250mm |
| Rated Power Of Heating:: | 60KVA | Rated Current Of Heating:: | 10000A |
| Motor Power:: | 0.75Kw | Parallelism Of Rammer:: | <0.1mm |
| Temperature Measure Compoment:: | Infrared Temperature Measurement | Size:: | 1300x1060x1600 Mm |
| Weight:: | 1200 Kgs | ||
| High Light: | 20MPa segment brazing machine,60KVA segment brazing machine,metal sintering machine 60KVA |
||
Product Description

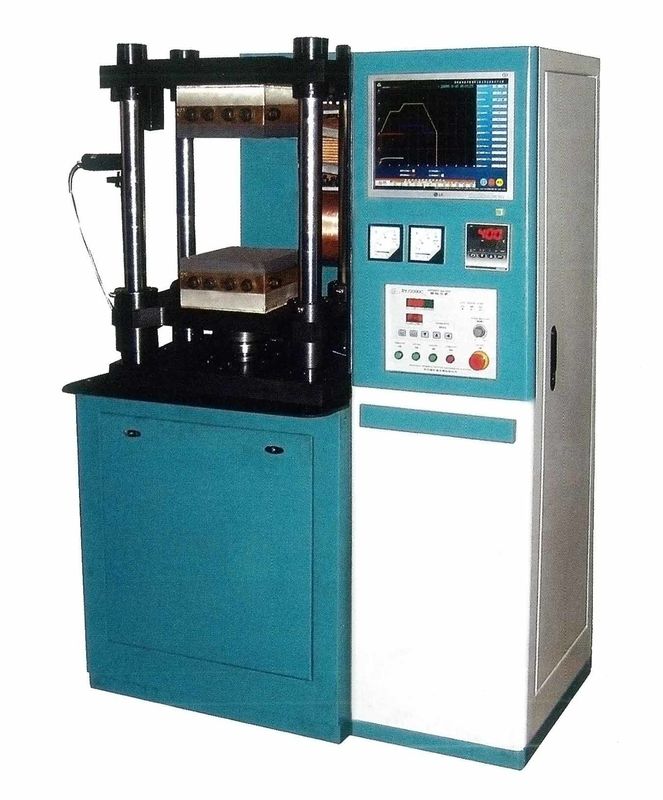

RYJ-2000C Sintering presser
This machine is pomputer controlled by preset program, it can save 255 sets of parameters ,by 13 segmentof pressure and temperature and time.With 15 inches color LCD screen can display technology parameter, curves of pressure and temperature and Chinese menu.
It is widely used for sintering various of diamond products.
Sintering pressure: 250KN.
Rated oil pressure: 20MPa.
Rammer size: 250x250mm
Heating power: 60KVA.
Current of heating: 10000A.
Motor power: 0.75KW
Jacket water: 30L/min.
Net weight: 1200kgs.
Dimension: 1300*1060*1600mm
Temperature measure component: infrared temperature measurement.
It is suitable for manufacturing diamond or powder metallurgical products such as diamond segments.
